GP:50 Model GP-JB Junction Box

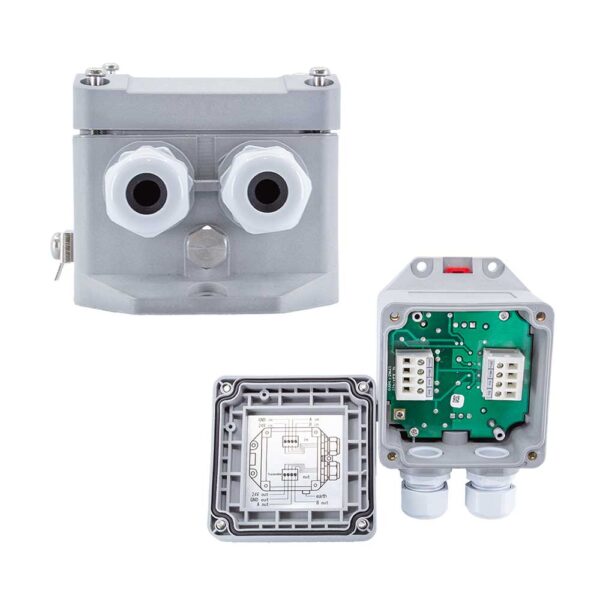

Model GP-JB Junction Box with Lightning Protection

Price: $150.00

Categories: , Tags: ,
Download Datasheet
GP50 Warranty Logo Download Datasheet
GP50 Warranty Logo

About this Product

Model GP-JB Junction Box with Lightning Protection offers a reliable termination point for level or pressure transmitter cables.

  • Suitable for 4-20mA Current Loop
  • Prevents Transmitter Damage Due to Lightning
  • Housing Protection to IP65/Nema 4X
  • Strain Relief Seals for Cable Entry and Exit
  • Integral Vent for Barometric Reference
  • Internal Terminal Block for Electrical Hookup
  • Both DIN Rail and Panel Mount Options

*NOTE: Product image may not reflect full configuration of this unit

Product Shipping

This product is in stock and will ship within 2 business days.

Need Higher Quantities of a Product?

Items reflect current stock on hand. Current stock will ship within 2 business days and any amount ordered in excess  of current stock will be placed on back order with a 4-5 week lead time.

Factory Quantity Discounts

Contact factory for volume discounts on orders over 50 pieces. Request Quote

Product Specs

Model: GP-JB
Range: Operation Temperature: -40 °F (-40 °C) to 180 °F (82 °C)
Electrical:

• 9-24 VDC Loop-Powered 4-20 mA
• External Earth Ground Lug
• Max. Working Current: <40mA

Mechanical:

• Mounting: Panel via 3 Bolts or DIN Rail (35mm x 7.5mm)
• Cable Grommet Seals: 0.17” to 0.35″ Dia. (4.3 mm x 8.9 mm)
• Housing Protection to IP65/Nema 4X
• Strain Relief Seals for Cable Entry and Exit
• Integral Vent for Barometric Reference
• Internal Terminal Block for Electrical Hookup

Warranty:

Product Warranty

Model GP-JB Junction Box with Lightning Protection offers a reliable termination point for level or pressure transmitter cables. Engineered for outdoor use, the Model GP-JB ensures a dry termination environment, features built-in lightning protection, and includes an integral vent for barometric reference. The internal lightning protection safeguards level transmitters from potential damage caused by electrical surges, making it ideal for areas prone to such hazards.

Description

Model GP-JB Junction Box with Lightning Protection offers a reliable termination point for level or pressure transmitter cables. Engineered for outdoor use, the Model GP-JB ensures a dry termination environment, features built-in lightning protection, and includes an integral vent for barometric reference. The internal lightning protection safeguards level transmitters from potential damage caused by electrical surges, making it ideal for areas prone to such hazards.
